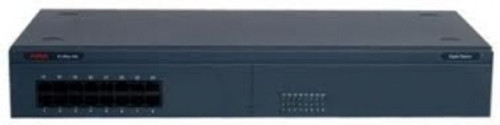

Avaya IP500 Digital Station Module 16


Avaya IP500 Digital Station Module 16

IP500 trunk cards can be fitted to existing IP500 base cards to provide support for trunk ports. The trunk card uses the ports provided on the base card for cable connection. The addition of an IP500 trunk card is supported on IP500 Digital Station, IP500 Analog Phone and IP500 VCM base cards. They are not supported on the IP500 Legacy Card Carrier base card.

For those base cards that support trunk cards, there are no restrictions on the combination of card types.

However in systems with both Analog Phone 8 base cards and analog trunk cards, combining the two types are recommended as it then provides analog power failure support for one trunk/extension (Not applicable to the Analog Phone 2 base card).

Each trunk card is supplied with the spacer pegs required for installation and a label to identify the card's presence on the physical unit once installed.

This expansion module provides additional Digital Station (DS) ports for selected Avaya 1400, 2400, 4400,5400, 9400, 9500, 6400, T3 (EMEA only) Series telephones and 3810 wireless telephones (North America only). The IP500 Digital Station module is available in several variants; 16 or 30 extensions, supporting IP Office telephones with RJ45 connectors and supporting Nortel telephones with RJ21 connectors. Refer to the Telephone section for Nortel phone support.

For installations in a rack, this module requires the IP500 Rack Mounting Kit. The IP500 Digital Station Module is functionally identical to the IP400 Digital Station V2 Module.

  • Telephones can be located up to 3280 feet (1km) from the control unit. For extensions located "out-ofthe-building" additional line protection will be needed. For more information on cabling and out of building guidelines, see the IP Office Installation Manual.
  • For systems where Direct Station Select (DSS) Units are being used, IP Office supports a maximum of:
  • BM32: (1616)
    • Up to 32 DBM32s supported (32 buttons each, up to 1024 buttons).
  • DSS4450: (4412D , 4424D )
    • Up to 8 DSS4450 modules per system (maximum of 2 per DS expansion module) (50 buttons each,max 400 buttons).
  • DBM32: (1416)
    • Up to 32 DBM32s supported (32 buttons each, up to 1024 buttons).
  • BM12: (9508 digital; 9608 and 9641 IP telephones)
    • Up to 36 buttons supported per telephone (3xBM12), up to 1024 buttons per system) system
  • EU24/EU24BL: (4620, 4621, 5420, 5620, 5621/4620, 4621, 5620, 5621)
    • Up to 8 EU24s per system (24 buttons each, max 196 buttons).
  • SBM24: (9630G, 9640, 9640G, 9650, 9650C)
    • Up to 42 SBM24 per system (24 buttons each, up to 1008 buttons).
  • T3 Series: (All T3 telephones)
    • Up to 30 T3 DSS modules supported. (36 buttons each, up to 1080 buttons). T3 DSS buttons are not included in the overall system limit for additional button module buttons.

Avaya IP500 Digital Station Module 16 Compatibility

  • Compatible with Avaya IP Office 500 Phone System and Avaya IP Office 500 V2 Phone System
  • Compatible with Avaya IP Office Partner Edition Phone System
  • External Expansion Module, takes 1 external port
  • Requires Avaya IPO Power Lead
  • Up to 16 Digital Extensions per module
  • Avaya IPO 500 Edition Phone System is compatible with 9500 Series Digital Phones, 1400 Series Digital Phones, 4400 Series Phones, 2400 Series Digital Phones, 5400 Series Digital Phones, and 3810 wireless Phones
  • Avaya IP Office Partner Edition Phone System is compatible with 1400 Series Digital Phones or 9500 Series Digital Phones
  • Maximum 8 per IP Office 500 Phone System
  • Maximum 2 Per IP Office Partner Edition
  • Rack mountable unit
  • IP500 running R4.2 or earlier; Professional Edition is required
